Weber Marine A-60 Floor N Light

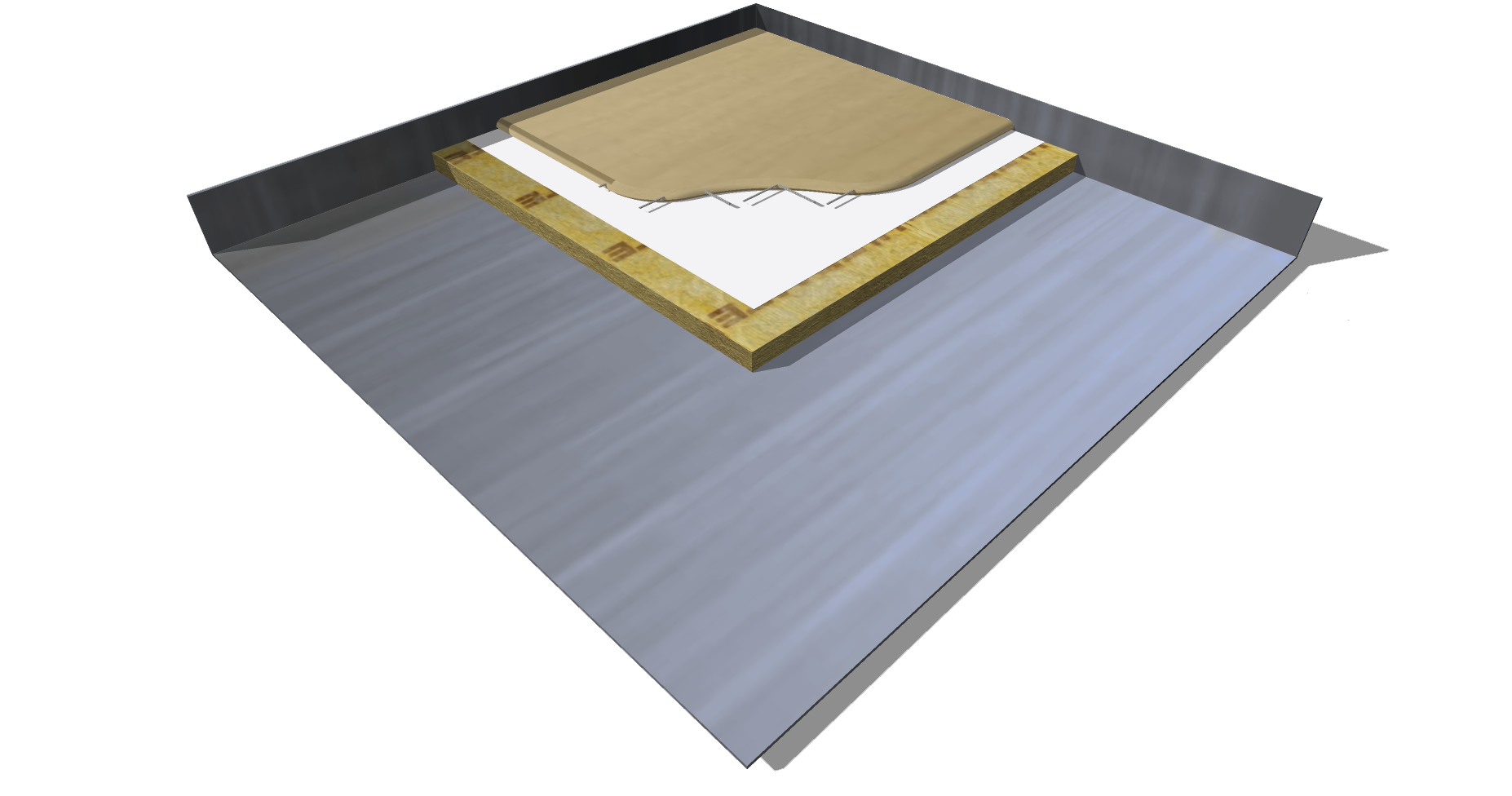

System picture Weber Marine A-60 Floor N Light

Weber, in collaboration with Saint-Gobain Technical Insulation, has developed an innovative A-60 classified floating floor solution.

Weber Marine A-60 Floor N Light eliminates the need for manual handling of steel plates and instead utilizes a pumpable, fiber-reinforced cement-based self-levelling material. This material possesses exceptional strenght and flexibility, enabling it to withstand the stress of a moving structure. It has been specicially deisgned for use in Marine & Offshore constructions.

The combination of “Isover U SeaProtect Slab 90” insulation and “weberfloor 4660N Marine Elastic” self-levelling material presents a distinctive floating floor solution. This vesrsatile design allows for multiple variants and achieving A-60 classification with a total thickness of just 45mm.

In addition to its exceptional noise and vibration insulation properties, Weber Marine A-60 Floor N Light offers benefits such as reduced weight, installation time, and material cost compared to tradtional floating floor types.

About this system

Variant I

min. 20 mm “Isover U SeaProtect Slab 90” mineral wool, 90 kg/m³.
woven glass fibre fabric
min. 25 mm weberfloor 4660N Marine Elastic / weberfloor 4670N Marine Base

Variant II

1-2 mm thick Viscoelastic layer “Weber Marine VEM PU-1
min. 5mm weberfloor 4660N Marine Elastic / weberfloor 4670N Marine Base
min. 20 mm “Isover U SeaProtect Slab 90” mineral wool, 90 kg/m³.
woven glass fibre fabric
min. 25 mm weberfloor 4660N Marine Elastic / weberfloor 4670N Marine Base

Variant III

Composed of layer 2, 3, 4, 5 as mentioned in Variant II.

The layer 3 (Variant I) & layer 5 (Variant II & III) is reinforced with Ø5mm steel grid.

Features and benefits

A-60 Fire classification
IMO & UK MER in multiple variants
No need of using steel plates/tiles
Excellent noise and vibration insulation properties
Tested up to 2200 kg load with wheel rolling traffic
Reduced installation time* up to 50%
Reduced materials costs* up to 50%
Improved working environment / HSE*
Surface ready for floor covering

*In comparison with traditional floating floor solutions using steel plates

System documentation

Weber Marine A-60 Floor N Light - MEDB00008DC (PDF - 310,95 KB)

Download • Send

Weber Marine A-60 Floor N_MEDB00003UC (PDF - 184,52 KB)

Download • Send

EC Declaration of Conformity DNV GL - Weber Marine A-60 Floor N Light (PDF - 1,39 MB)

Download • Send

EC Declaration of Conformity DNV GL - Weber Marine A-60 Floor N (PDF - 1,47 MB)

Download • Send

Weber Marine A-60 Floor N - Class NK Certificate (PDF - 189,6 KB)

Download • Send

Associated products

weberfloor 4660N Marine Elastic

Self-levelling cement-based underlayment designed for use in marine and offshore installations that requires high flexibility and strenght.

Packaging Weber Marine VEM PU-1

Weber Marine VEM PU-1

Viscoelastic material for marine and offshore installations that requires insulation for noise and vibrations.
